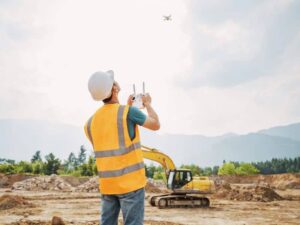

Every site plan starts with a picture of what’s already there. If that picture is thin or out of date, the design team ends up guessing at slopes, drainage, and access, and those guesses show up later as change orders. Aerial surveying is the process of collecting mapping data from above, usually with drones or crewed aircraft carrying cameras or laser scanners. It gives developers a fast, detailed view of existing site conditions before anyone commits to a layout. Used well and paired with field checks, it can save weeks of redesign and a lot of money.

How Aerial Surveying Captures Existing Site Conditions

Aerial surveying captures site conditions by flying over the property and recording thousands of measured images or laser points. That data is then processed into maps, surface models, and base drawings the design team can work from. Two methods do most of the work.

Photogrammetry uses overlapping photos taken from different angles. Software matches points across those photos to build a measured 3D model and an orthomosaic, which is a single aerial image corrected so it can be measured like a map. LiDAR sends out laser pulses and records how long they take to bounce back. Because some pulses slip through gaps in leaves, LiDAR often does a better job of reading ground elevations under light tree cover.

Neither method works on its own. Surveyors set ground control points, which are marked targets on the site measured with survey equipment. Those points tie the aerial data to real coordinates and help the final product hit the accuracy the project needs.

Mapping Terrain, Improvements, and Access Before Design

An aerial survey can map most of what a designer needs to see on the surface. It shows how the land rises and falls, what’s been built, and how people and vehicles reach the site. That gives the team a shared starting point instead of a patchwork of old plans and photos.

Typical outputs include:

• Contours and slopes across the whole property
• Drainage paths, low spots, and ditches
• Buildings, parking lots, sidewalks, and curb lines
• Visible utility features such as poles, manholes, and inlets
• Tree lines and wooded areas
• Driveways, road frontage, and existing entrances

Access deserves extra attention. A site may look well connected from the road, but aerial data can show a steep entrance grade, a tight turning area, or a curb cut in the wrong spot. Spotting that early helps the engineer plan entrances that work for traffic, deliveries, and emergency vehicles.

Using Aerial Data to Support Early Site Planning

Aerial data is most useful in the early planning phase, when options are still open. Designers can drop building pads, parking fields, and stormwater areas onto an accurate base map and see how each option fits the land. That makes it easier to compare layouts before spending money on detailed engineering.

Grading is a good example. With a surface model in hand, the engineer can estimate how much soil a layout will need to cut or fill. A plan that balances earthwork on site often costs far less than one that needs truckloads of fill hauled in.

The same base map helps the whole team talk through the project. Architects, civil engineers, and landscape designers can all work from one set of data. Keep in mind that early planning data may not meet every requirement for permit drawings. Review standards can vary by municipality, county, and project type, so confirm what the reviewing office will expect.

Where Field Verification Complements Aerial Surveying

Aerial surveying sees the surface, but it can’t see everything that matters to design. Field crews fill those gaps with ground measurements and on-site checks. The best results come from planning both parts together from the start.

Gaps Aerial Data Can Leave

Dense tree canopy can block cameras and limit how much ground LiDAR reaches. Underground utilities don’t show up from above, so they need utility locating and field survey work. Small details also need ground checks, such as pipe depths inside manholes, finished floor heights, and precise curb and gutter grades.

Property lines are another gap. An aerial image can show fences and pavement, but it can’t show where the legal boundary sits. A boundary survey is still needed to locate the lines, and it may also be needed for easements and right-of-way limits.

Flight Rules and Site Limits

Drone flights follow federal airspace rules, and some areas have restrictions near airports or certain facilities. A qualified operator checks those limits before scheduling a flight. Weather, wind, and leaf cover can also affect timing and data quality, so build a little flexibility into the schedule.

How Better Existing-Conditions Data Reduces Design Risk

Good existing-conditions data reduces design risk by catching problems while they’re still cheap to fix. Moving a building on paper costs very little. Moving it after grading has started costs a lot.

Accurate data also helps with bids. Contractors price work more tightly when the base drawings match the site. When drawings miss a slope, a drainage path, or a utility, bids tend to carry more contingency, and surprises in the field lead to change orders.

Before you order aerial work, ask your surveyor these questions:

• What accuracy does this project need, and how will the survey reach it
• Which deliverables will the design team receive, such as CAD files or contours
• How will ground control be set and checked
• Which areas will need field verification
• When will the data be captured, and how current will it be at design start

Confirm survey needs early if financing, permitting, or construction dates depend on the results. Scheduling flights, field work, and processing all take time.

Frequently Asked Questions

What is aerial surveying?

Aerial surveying is the collection of mapping data from above using drones or crewed aircraft. The aircraft carry cameras, laser scanners, or both. The data is processed into maps, surface models, and base drawings. Developers and engineers use those products to plan sites before design begins.

Is aerial surveying as accurate as a ground survey?

Aerial surveying can be very accurate when it’s tied to good ground control. Accuracy depends on the equipment, flight height, site conditions, and processing. Some details, like pipe depths or exact curb grades, still need ground measurements. Ask your surveyor what accuracy fits your project before the flight is planned.

Can aerial surveying show property lines?

Aerial surveying shows physical features like fences, pavement, and buildings. It doesn’t show legal property lines on its own. A boundary survey is needed to locate the lines using deeds, plats, and field evidence. Many projects combine both so the design fits within the property limits.
